Orbit 3 in 1 Power Rack

OBB9011B Orbit 3-in-1 Power Rack with Weight Stack

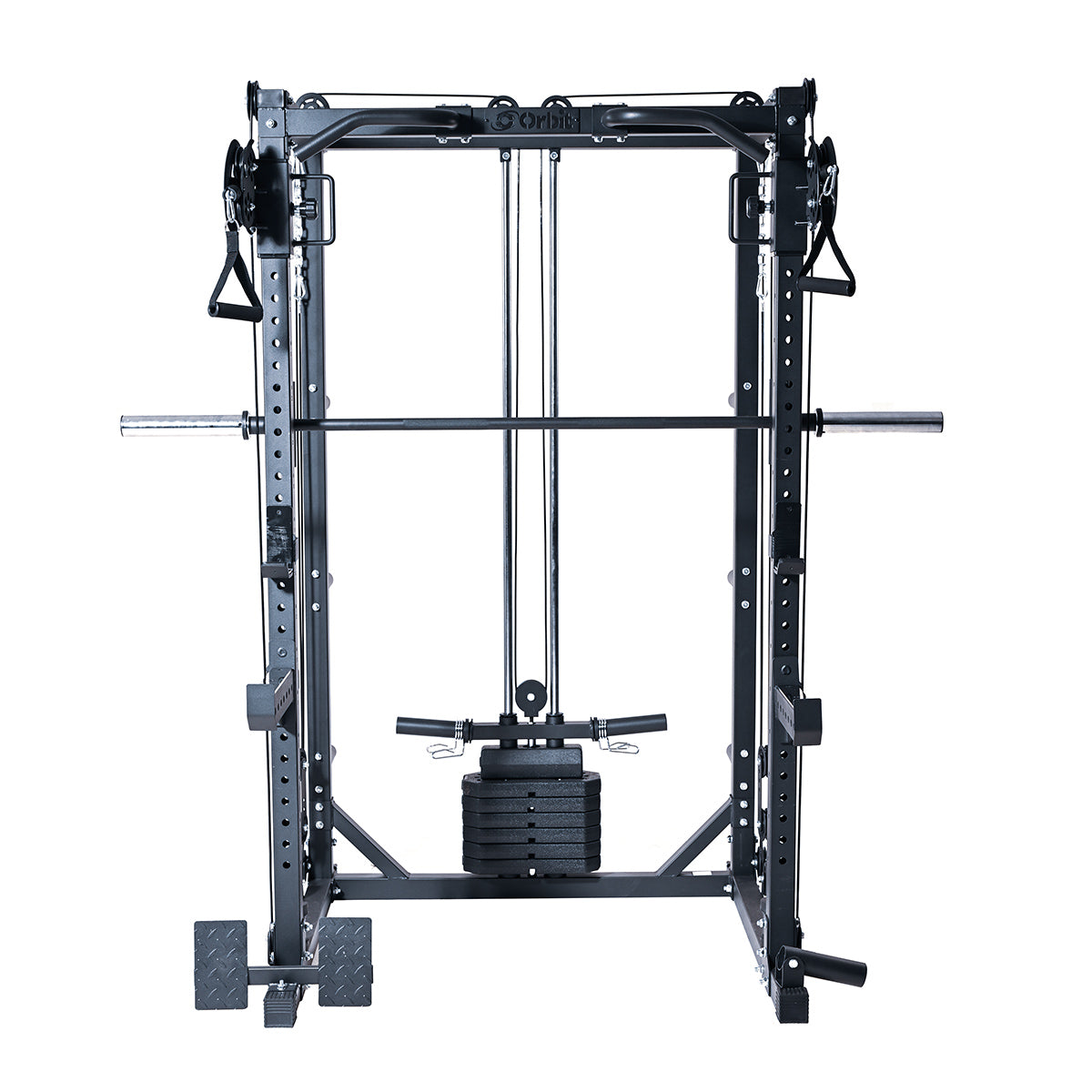

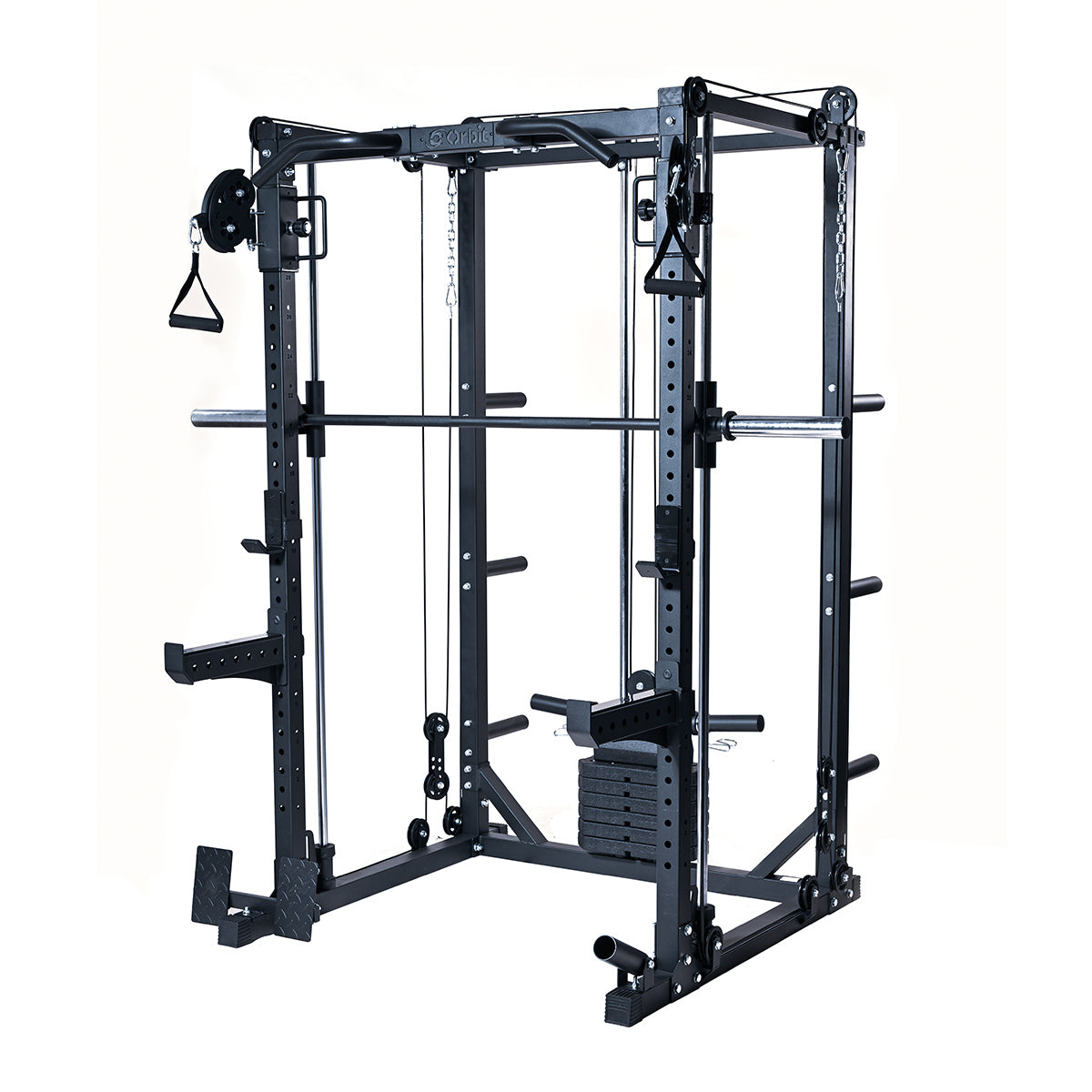

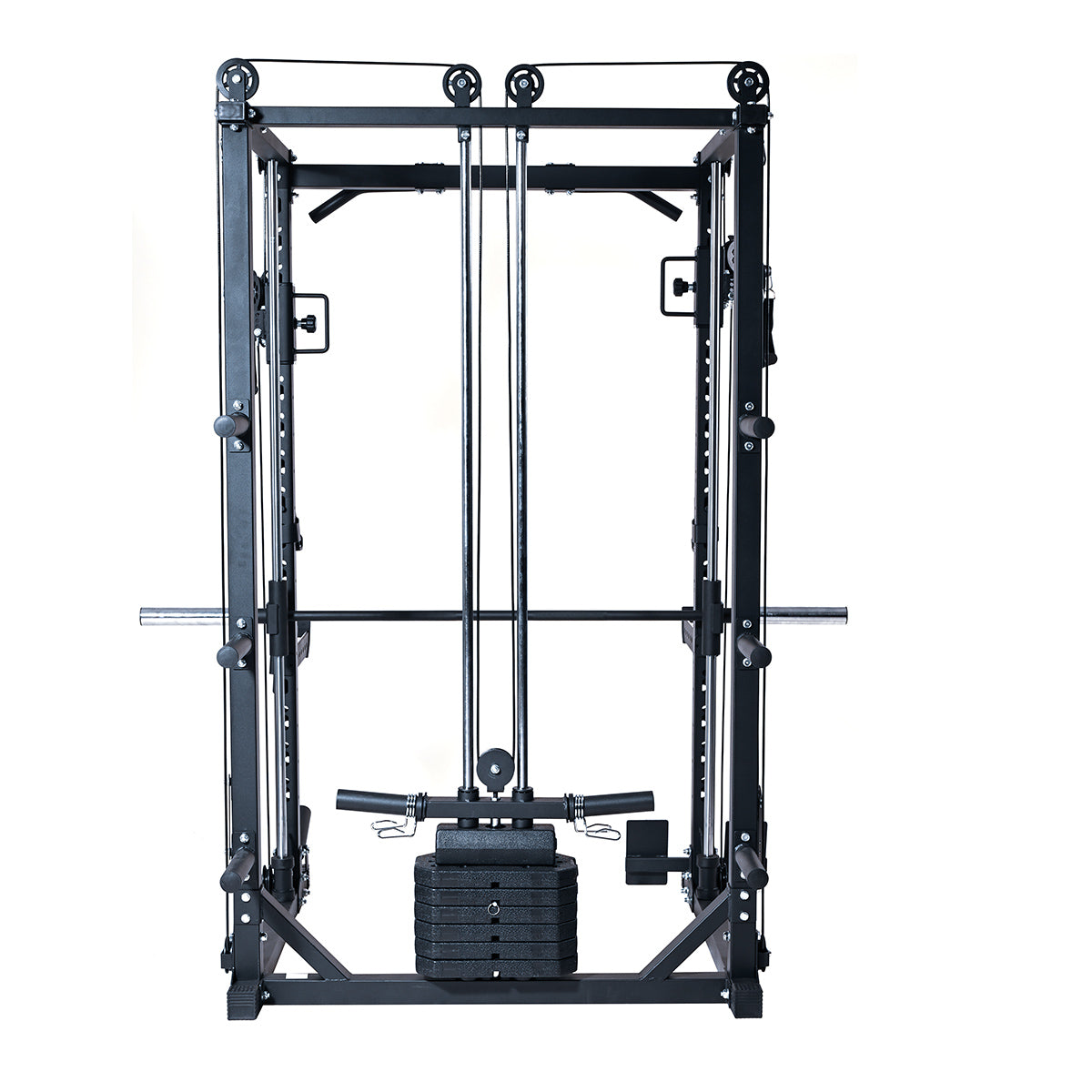

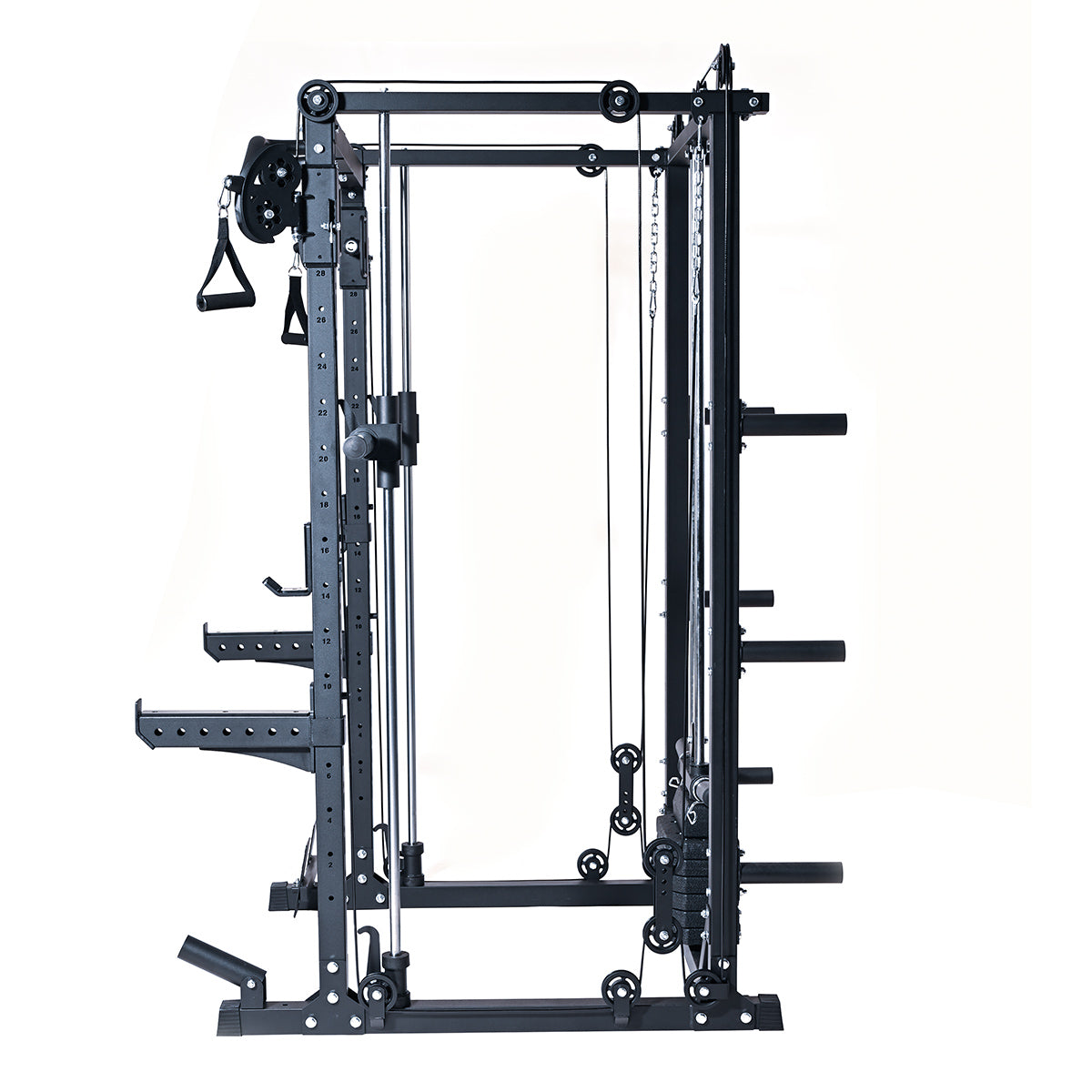

The Orbit OBB9011B 3-in-1 Power Rack is a multi-function home strength training system that combines a power rack, Smith machine and functional trainer in one setup.

Designed for varied strength workouts at home, the OBB9011B features a 39kg weight stack with a 1:2 weight ratio on the single functional handle, chin-up bar, torsonator attachment, Smith bar, J-hooks, safety arms and six Olympic weight plate holders. With a 200kg maximum load and 10 height adjustment levels, it provides multiple training options from a single strength station.

Why Choose the Orbit OBB9011B 3-in-1 Power Rack?

• 3-in-1 strength system combining a power rack, Smith machine and functional trainer
• 39kg weight stack with a 1:2 weight ratio on the single functional handle
• Smith bar for guided barbell movements
• Functional trainer dual assembly for cable exercises
• Chin-up bar for bodyweight training
• Torsonator attachment for landmine-style training
• 10 height adjustment levels for different exercise setups
• 2 J-hooks + 2 safety arms included
• Safety hooks, safety catch and drop protection buffers
• 6 Olympic weight plate holders for integrated plate storage
• Heavy-duty steel frame (60x60xT2.0mm)
• 200kg maximum load

3-in-1 Strength Training System

The OBB9011B brings multiple strength training functions together in one home gym setup.

It combines:

• Power Rack – for compatible free-weight barbell exercises using the included J-hooks and safety arms

• Smith Machine – for guided barbell movements using the integrated Smith bar

• Functional Trainer – for cable-based strength exercises using the dual assembly

This combination allows you to move between free-weight, guided bar and cable exercises without needing three separate strength machines.

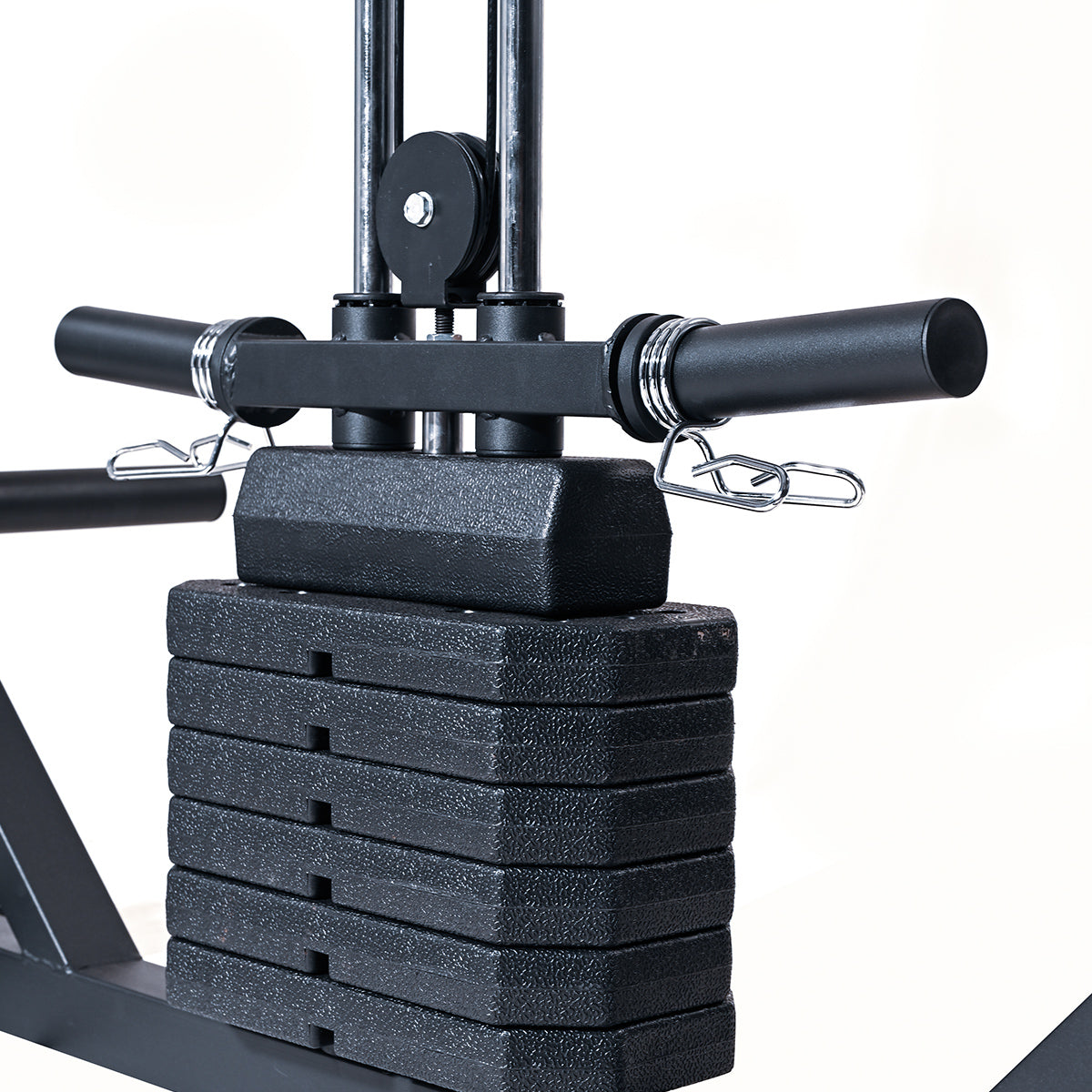

39kg Weight Stack with 1:2 Weight Ratio

**The functional trainer uses a 39kg weight stack with a 1:2 weight ratio on the single functional handle.**

The pin-loaded stack allows resistance to be adjusted between cable exercises without manually loading and unloading weight plates.

A specially designed top plate fitted with two weight horns allows you to add Olympic weight plates to increase the total load from the 39kg weight stack up to approximately 200kg, with up to 160kg of additional Olympic weight plates.

The weight horns also give you greater control over smaller resistance increases. Instead of being limited to the standard 6kg weight stack increments, fractional Olympic plates such as 1.25kg, 2.5kg or 5kg plates can be added to fine-tune the resistance.

**Olympic weight plates and clips are sold separately.**

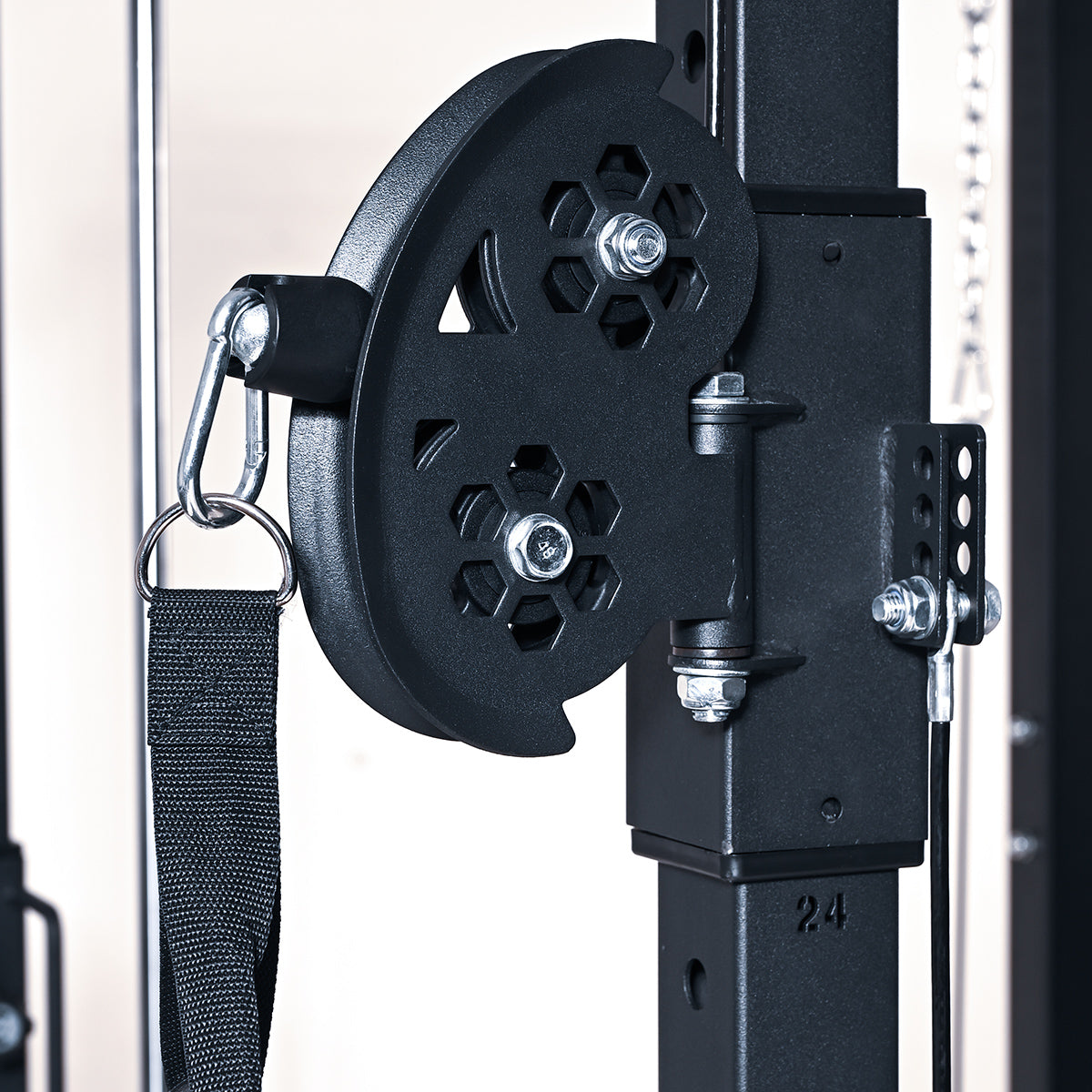

The functional trainer dual assembly expands the range of upper-body, lower-body and core exercises that can be incorporated into your home strength workouts.

Integrated Smith Machine

The built-in Smith machine provides a guided bar path for compatible strength exercises.

Safety hooks, a safety catch and drop protection buffers provide integrated support when using the Smith bar, while the rack's multiple training positions allow the system to be configured for different movements.

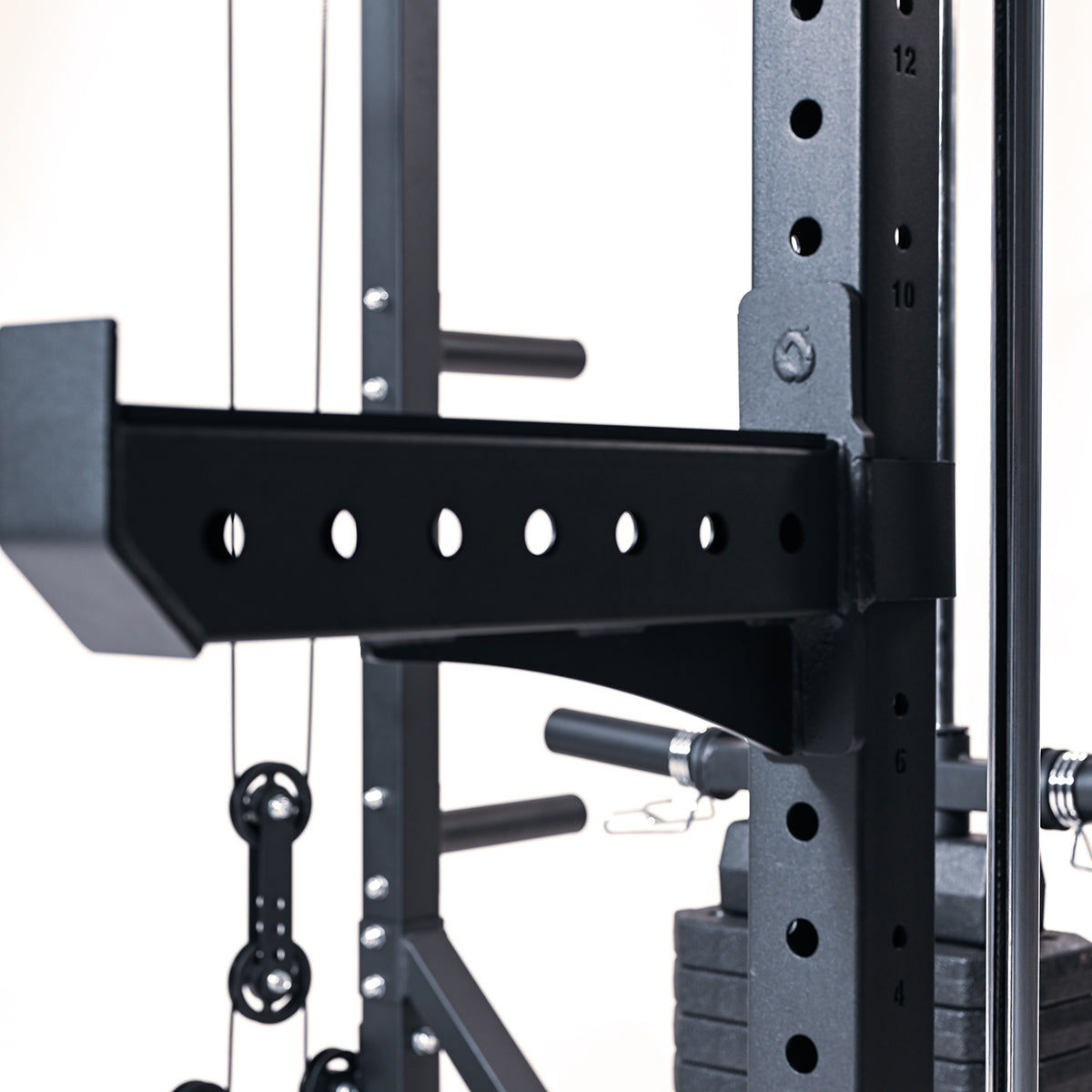

Power Rack with J-Hooks & Safety Arms

For free-weight barbell training, the OBB9011B includes:

• 2 × J-hooks
• 2 × safety arms

The rack provides 10 adjustment levels, allowing the J-hooks and safety components to be positioned for different exercises and training setups.

This adds free-weight training capability alongside the integrated Smith machine and functional trainer.

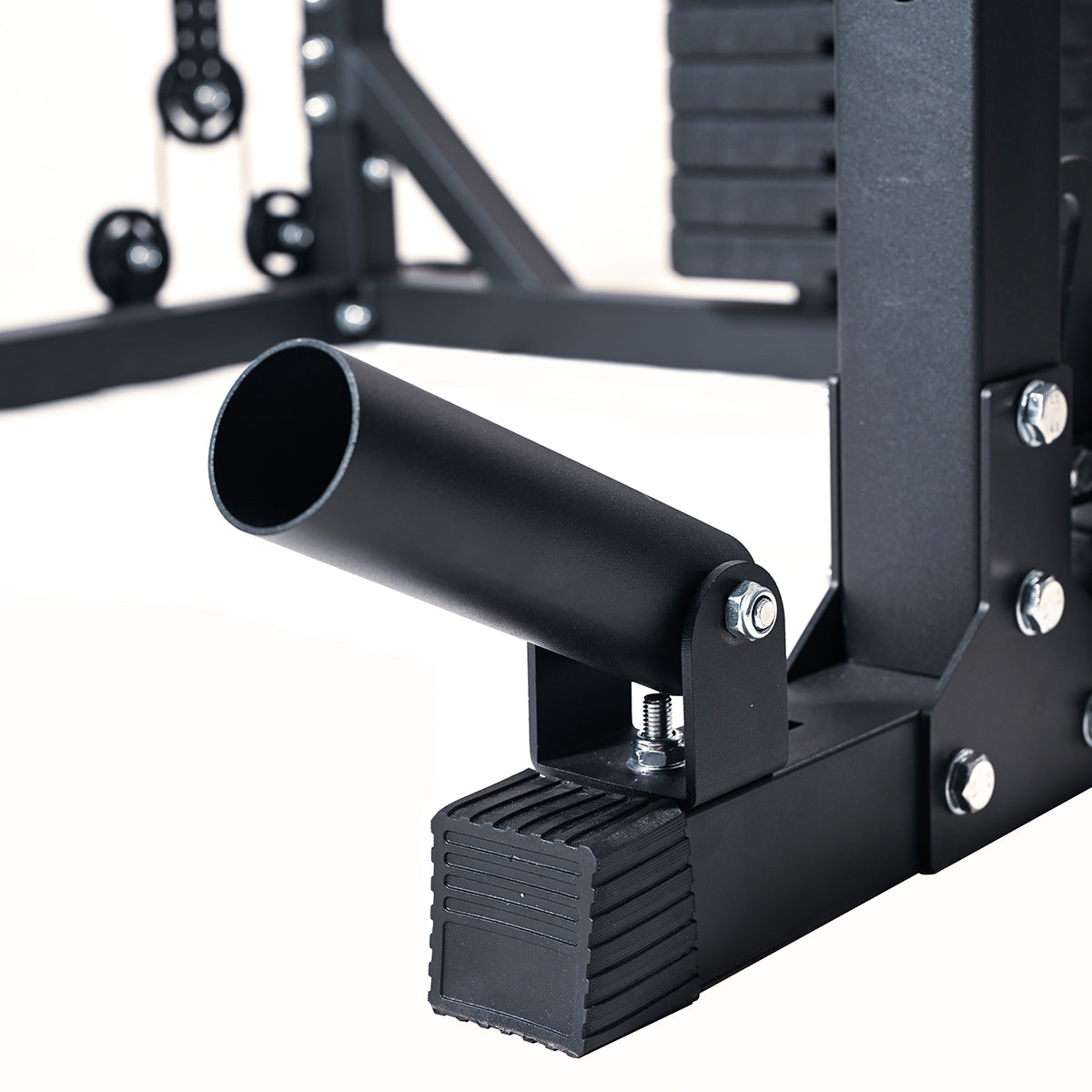

Chin-Up Bar & Torsonator Attachment

The integrated chin-up bar adds bodyweight pulling exercises to the rack.

A torsonator attachment provides an additional option for compatible barbell exercises, expanding the system beyond conventional rack, Smith machine and cable movements.

Integrated Olympic Weight Plate Storage

The OBB9011B includes six Olympic weight plate holders, providing dedicated storage for compatible Olympic plates directly on the rack.

This helps keep weight plates organised and accessible around your strength training area.

Weight plates are not listed as included with the base OBB9011B rack and should be purchased separately where required.

Heavy-Duty Steel Frame

The OBB9011B is constructed from heavy-duty 60 × 60 × T2.0mm steel frame and has a listed maximum load of 200kg.

The rack measures:

131cm L × 123cm W × 218cm H

Before purchasing, check the available floor space and ceiling height in your training area. Allow additional clearance around the rack for exercises, weight plates, barbells and accessories.

**Extend Your Training Setup**

Get more from your OBB9011B by pairing it with an Olympic weight set and adjustable bench.

Additional Olympic plates allow you to increase the functional trainer resistance beyond the standard 39kg weight stack, while an adjustable bench opens up even more strength training options across the power rack, Smith machine and functional trainer.

**Olympic weight plates, clips and adjustable bench are sold separately. Ask our team about available package options.**

Is the Orbit OBB9011B Power Rack Right for You?

The Orbit OBB9011B is designed for home users who want multiple strength training options from one integrated setup.

It may suit you if you want:

• A power rack for free-weight training
• An integrated Smith machine
• Cable-based functional training
• A pin-loaded weight stack
• Chin-up training
• Torsonator / landmine-style exercise options
• Integrated Olympic plate storage
• Multiple strength stations without purchasing separate machines

Before purchasing, check the 131 × 123cm equipment footprint, 218cm height and surrounding training clearance against your available space.

Specifications

Training Stations & Features

The OBB9011B includes:

• Power rack
• Smith bar
• Functional trainer dual assembly
• Chin-up bar
• Bar holder
• Safety catch
• Safety hooks
• Safety arms
• J-hooks
• Foot plate
• Torsonator attachment
• Drop protection buffers
• Olympic weight plate storage

Warranty

The Orbit OBB9011B is currently listed with:

• 2 years – Frame
• 1 year – Bearings and bushings
• 6 months – Cable and pulley
• 1 year – Labour

For warranty assistance, replacement parts or equipment servicing, contact Orbit Fitness.
