Mighty Max X302 Functional Trainer/Half Rack

⚠️ Large Item Collection Notice This Product comes in a crate (Not a box) and will not fit in cars. A large trailer or suitable vehicle is required. Items over 100KG must be collected from our Warehouse Gnangara Location Only (Our Stores DO NOT have forklifts).

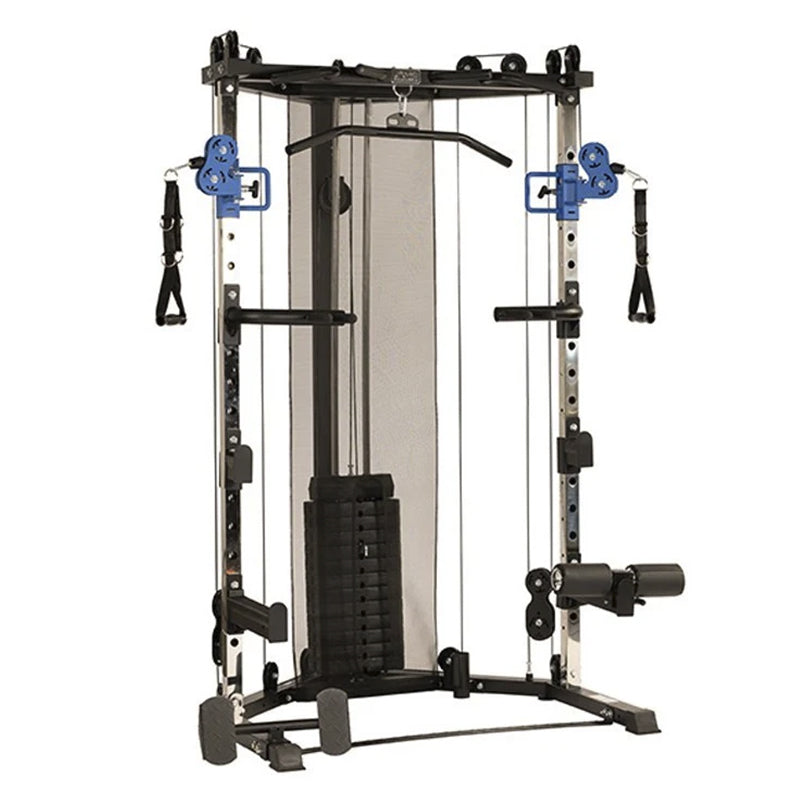

The Orbit Fitness Mighty Max X302 Functional Trainer

The X302, with its compact design, effortlessly blends power and flexibility, making it an ideal choice for users of all skill levels and sizes to enjoy effective and engaging workouts in limited space.

The Orbit Fitness Mighty Max X302 Functional Trainer/Half Rack is a multi-function home strength training system combining an adjustable dual-pulley functional trainer with a half rack, lat pulldown, chin-up station and dip station.

Powered by a 60kg weight stack, the X302 provides cable resistance for a wide range of upper-body, lower-body and core exercises. It also includes J-hooks and safety catches for compatible barbell training, plus multiple attachments to expand your exercise options from one compact strength station.

Why Choose the Mighty Max X302?

• Functional trainer + half rack in one home strength station
• 60kg weight stack for pin-selected resistance training
• Dual adjustable pulleys with 14 carriage height positions
• 2:1 dual-pulley ratio for functional cable exercises
• 1:1 lat pulldown ratio
• 18 J-hook / safety bar catch positions
• 16 safety catch / bar holder positions
• Multi-grip chin-up station for bodyweight training
• Dip station included
• 200kg maximum bar holder load
• 120kg maximum chin-up / dip station load
• Multiple cable attachments included
• Heavy-duty high-tensile and stainless steel construction

Functional Trainer & Half Rack in One

The Mighty Max X302 combines cable-based functional training and barbell training within one home strength setup.

The adjustable dual pulleys allow you to perform cable exercises at different heights and angles, while the half rack provides J-hooks and safety catches for compatible barbell exercises.

The X302 also incorporates dedicated lat pulldown, chin-up and dip stations, giving you additional options for upper-body and bodyweight training.

60kg Weight Stack

The X302 uses a 60kg cement weight stack for cable resistance exercises.

Resistance can be adjusted using the selector system, making it easier to move between exercises and resistance levels without manually loading weight plates onto the cable system.

The machine provides:

• Dual pulley resistance: 2.5–30kg using a single pulley
• Dual pulley resistance: 4.5–60kg using both pulleys
• Lat pulldown resistance: 4.5–60kg

Adjustable Dual Pulley System

The X302 features two adjustable pulley carriages with 14 height positions, allowing the cable starting point to be changed for different movements.

The 2:1 dual-pulley ratio supports controlled cable movements and provides flexibility for exercises performed from different angles.

The dedicated lat pulldown operates at a 1:1 ratio, providing a separate setup for pulldown exercises.

Half Rack for Barbell Training

The integrated half rack expands the X302 beyond cable training.

It provides:

• 18 J-hook / safety bar catch positions
• 16 safety catch / bar holder positions
• J-hooks
• Bar holder / safety catch
• Safeties

The bar holder is rated to a maximum load of 200kg.

A barbell, weight plates and bench are not listed as included with the base X302 and should be purchased separately if required.

Multi-Grip Chin-Up & Dip Stations

The integrated multi-grip chin-up station provides five hand-grip options for different pull-up and chin-up variations.

The X302 also includes a dedicated dip station for bodyweight strength exercises.

The chin-up and dip station has a listed maximum load of 120kg.

Lat Pulldown & Seated Cable Exercises

The dedicated lat pulldown setup operates at a 1:1 cable ratio with resistance ranging from 4.5–60kg.

The included knee holder helps provide support during pulldown exercises, while the foot holder can be used when setting up compatible seated cable exercises.

A Lat Bar is included with the machine.

Included Attachments & Training Stations

The Mighty Max X302 includes:

• Adjustable D Handle
• Bar Holder / Safety Catch
• Dip Station
• Foot Holder
• J-Hooks
• Knee Holder / Ankle Holder
• Lat Bar
• Multi-Grip Chin-Up Station
• Straight Bar
• Tricep Rope
• Weight Stack Mesh Shroud

These attachments allow you to configure the X302 for a range of cable, bodyweight and compatible barbell exercises.

Heavy-Duty Steel Construction

The X302 is constructed from high-tensile steel and stainless steel and uses a 750kg-rated cable.

The machine measures:

220cm H × 144cm W × 140cm D, including the foot plate.

Before purchasing, check your available floor area and ceiling height and allow additional clearance around the equipment for barbell, cable and bodyweight exercises.

Is the Mighty Max X302 Right for You?

The Mighty Max X302 is designed for home users who want cable, barbell and bodyweight strength training from one integrated setup.

It may suit you if you want:

• An adjustable functional trainer for home use
• A half rack for compatible barbell exercises
• Pin-selected cable resistance
• Dedicated lat pulldown training
• Chin-up and dip stations
• Multiple pulley positions for different cable exercises
• Included cable attachments
• Multiple training functions without purchasing several separate strength machines

Before purchasing, check the 144 × 140cm footprint, 220cm height and required surrounding training clearance against your available space.

Specifications

Large Item Collection Notice

The Mighty Max X302 is supplied in a crate rather than a box and will not fit in a standard car.

A large trailer or suitable vehicle is required for collection. Items over 100kg must be collected from Orbit Fitness's Gnangara warehouse, as Orbit retail stores do not have forklifts.

Check your delivery or collection requirements before purchasing.

Warranty

The Mighty Max X302 is currently listed with:

• 2 years – Frame
• 1 year – Bearings / bushings
• 1 year – Cable / pulley
• 6 months – Upholstery, foam and grip

For warranty assistance, replacement parts or equipment servicing, contact Orbit Fitness.
